The R210SMS-300+ Sliding Compound Mitre Saw is the perfect size for most cutting tasks, it maintains the compact, robust design and Multi-Material cutting capability of a 210mm model but with the 300mm cross-cutting capacity of it's bigger 255mm brother. Equipped with 'PLUS' model features, this is the ultimate compact Mitre Saw for any tradesman or DIYer.

Go premium and equip yourself with the best value for money 210mm sliding mitre saw on the market. Multi-material cutting technology with all the features you'll need to get the job done. Delivering accuracy, reliability and the power to handle heavy-duty materials - the R210SMS-300+ is truly superb value for money.

Features

Multi-Material cutting technology. One saw, one blade, cuts all. *
Accurate cutting with laser guidance, smooth sliding functionality, adjustable depth of cut and 9 positive mitre stops.
Reliable smooth square cutting every time in a variety of materials.
Powerful 1500W hi-torque motor with optimised gearbox & blade system.
0° - 45° bevel tilt and 50° - 50° mitre covers all common cutting angles.
Compound cut ability for accurate cuts in decorative moulding and skirting for a professional finish.
The R210SMS-300+ has an impressive 300mm slide capacity, allowing a greater cut capacity for wider materials, compared to a 230mm slide on the R210SMS+ model.
Complete the cutting package with the Evolution's Mitre Saw Stand and 210mm Diamond blade. (Sold separately)
3 Year limited warranty.

PLUS+ Features

Premium Japanese Tungsten-Carbide-Tipped (TCT) 210mm blade included.
Dual Quick-Release clamps included for additional accuracy & faster adjustments.
Cleaner & safer working environment with dust collection bag & dust port adaptor included for use with vacuum extraction.
Integrated carry handles - easy to carry & transport around the workplace.
3m power cable reduces the need for extension leads.

Specifications

Motor (110V 50Hz):	1500W
Motor (240V 50Hz):	1500W
Speed No Load:	3750 min^-1
Max. Mitre:	50° - 50°
Max. Bevel (Left):	45°
Blade Guard:	Cast Aluminium
Cable Length:	3m
Dust Port Diameter:	36mm
Blade Dia.:	210mm
No. of Teeth:	24
Bore:	25.4mm
Kerf:	1.7mm
Max. Cross Cut (0° x 0°):	300mm x 65mm
Max. Bevel Cut (0° x 45°):	300mm x 38mm
Max. Mitre Cut (45° x 0°):	210mm x 65mm
Max. Compound Cut (45° x 45°):	210mm x 38mm
Mild Steel Plate (Max. Thickness):	6mm
Mild Steel Box Section (Max. Wall Thickness):	3mm
Product Dimensions:	320mm x 710mm x 710mm (with saw head down)
Packaging Dimensions:	575mm x 325mm x 535mm
Product Weight:	13.2 kg
Packaged Weight:	15 kg
Sound Pressure Level L_PA:	110V: 95.7 dB(A) / 220-240V: 96.5dB(A)
Sound Power Level L_WA:	110V: 108.7 dB(A) / 220-240V: 109.5dB(A)
Uncertainty K:	K_pA & K_WA: K=3 dB(A)
Laser Class:	Class 2
Laser Source:	Laser Diode
Laser Output Power (Max):	<1mW
Wave Length (Nm):	650

Items Supplied

24T Multi-Material TCT Blade

3pc Hold Down Clamp

Machine Table Extensions

Dust Collection Bag

Dust Port Adaptor

Front Clamp

Rear Carry Handle

Double Ended Hex Key (M6 & M4)

Compatible With

210mm 24t Multi-Material Cutting TCT Blade
210mm 20t Multi-Material Cutting TCT Blade
210mm 40t Fine Wood Cutting TCT Blade
210mm 30t General Wood Cutting TCT Blade
210mm Diamond Masonry Cutting Blade

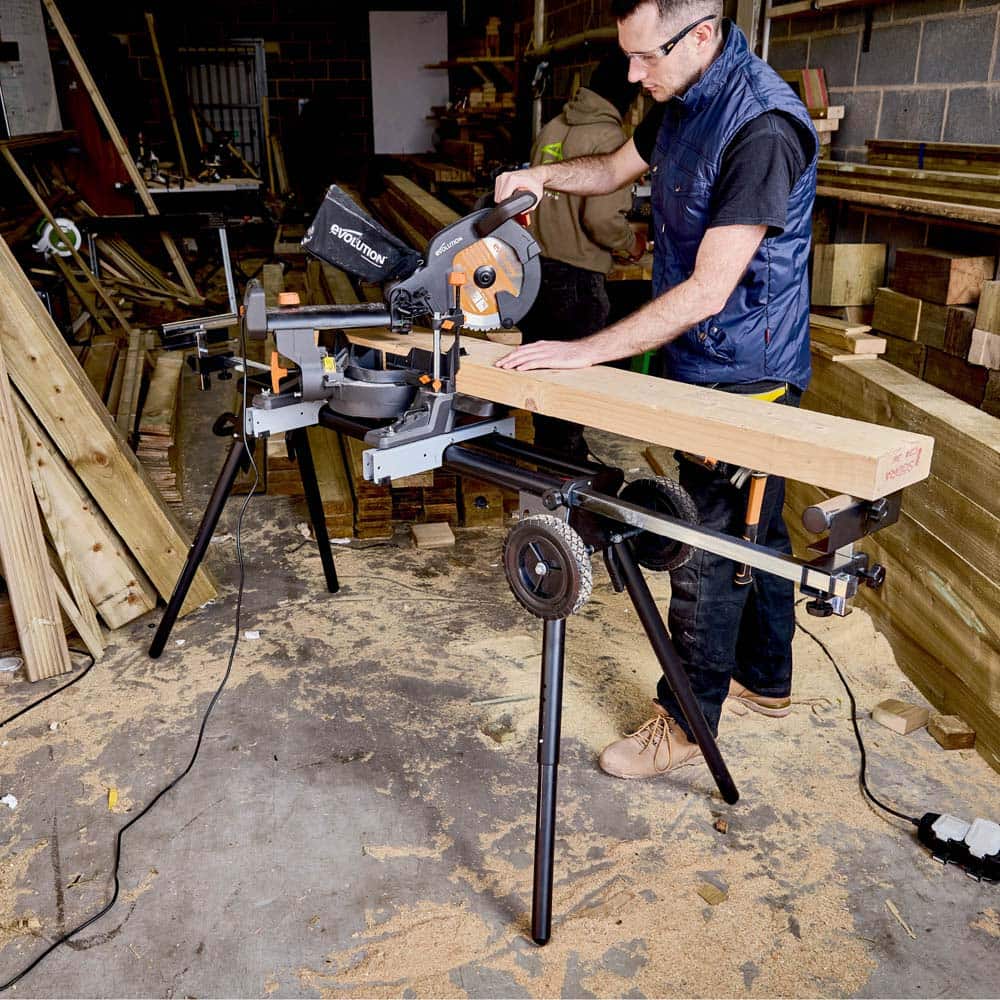

Mitre Saw Stand

This versatile and portable Mitre Saw Stand is perfect for home, workshop and on-site use. Weighing only 15.5kg it's light enough to be carried with one hand and, thanks to its folding legs and telescopic arms, folds down to 1000mm x 280mm x 230mm.

Despite being light and compact, the stand can safely support up to 150kg, and long work-pieces up to 3m in length on its extendable arms. The quick release mounting brackets allow the mounting of any saw with mounting holes up to 680mm x 370mm apart.

Features

Quick & easy set-up.
Easy to transport and store away.
Fits most brands of mitre saws.
Height adjustable rollers with built-in end stop. Perfect for repeat cutting.
Quick-release brackets for fast saw fitting and removal.
Support up to 3m long work-pieces and up to 150kg of weight.
3 Year limited warranty.

Specifications

Max. Length Material Support:	3m
Max. Load:	150kg
Max. Saw Mounting Hole Spacing:	680mm x 330mm

Dimensions & Weight

Collapsed Product Dimensions:	1000mm x 280mm x 230mm
Assembled Product Dimensions:	1100mm x 600mm x 750mm
Arms Fully Extended Product Dimensions:	1970mm x 600mm x 750mm
Packaging Dimensions:	945mm x 265mm x 300mm
Product Weight:	15.5kg
Packaged Weight:	17.65kg

Compatible With

R185CMS-Li - 185mm Cordless Mitre Saw
R185SMS-Li - 185mm Cordless Sliding Mitre Saw
R185SMS+ - 185mm Mitre Saw
R210CMS - 210mm Mitre Saw
R210SMS - 210mm Mitre Saw
R210SMS+ - 210mm Mitre Saw
R210SMS-300+ - 210mm Mitre Saw
R210MTS - 210mm Mitre/Table Saw
RAGE3-S - 210mm Mitre Saw
RAGE3-S300 - 210mm Mitre Saw
R255SMS - 255mm Mitre Saw
R255SMS+ - 255mm Mitre Saw
R255SMS-DB - 255mm Mitre Saw
R255SMS-DB+ - 255mm Mitre Saw
RAGE3 - 255mm Mitre Saw
RAGE3-DB - 255mm Mitre Saw
F210CMS - 210mm Mitre Saw
F210SMS - 210mm Mitre Saw
FURY3-B - 210mm Mitre Saw
FURY3 - 210mm Mitre Saw
F255SMS - 255mm Mitre Saw
FURY3-XL - 255mm Mitre Saw

210mm Sliding Mitre Saws
