Evolution R185CCSL 185mm Circular Saw with TCT Multi-Material Cutting Blade
The lightest of the 185mm circular saw models, it is a perfect addition to any workshop or job site. Get the job done with an impressive 64mm depth of cut and 0˚ to 45˚ bevel tilt.
Features

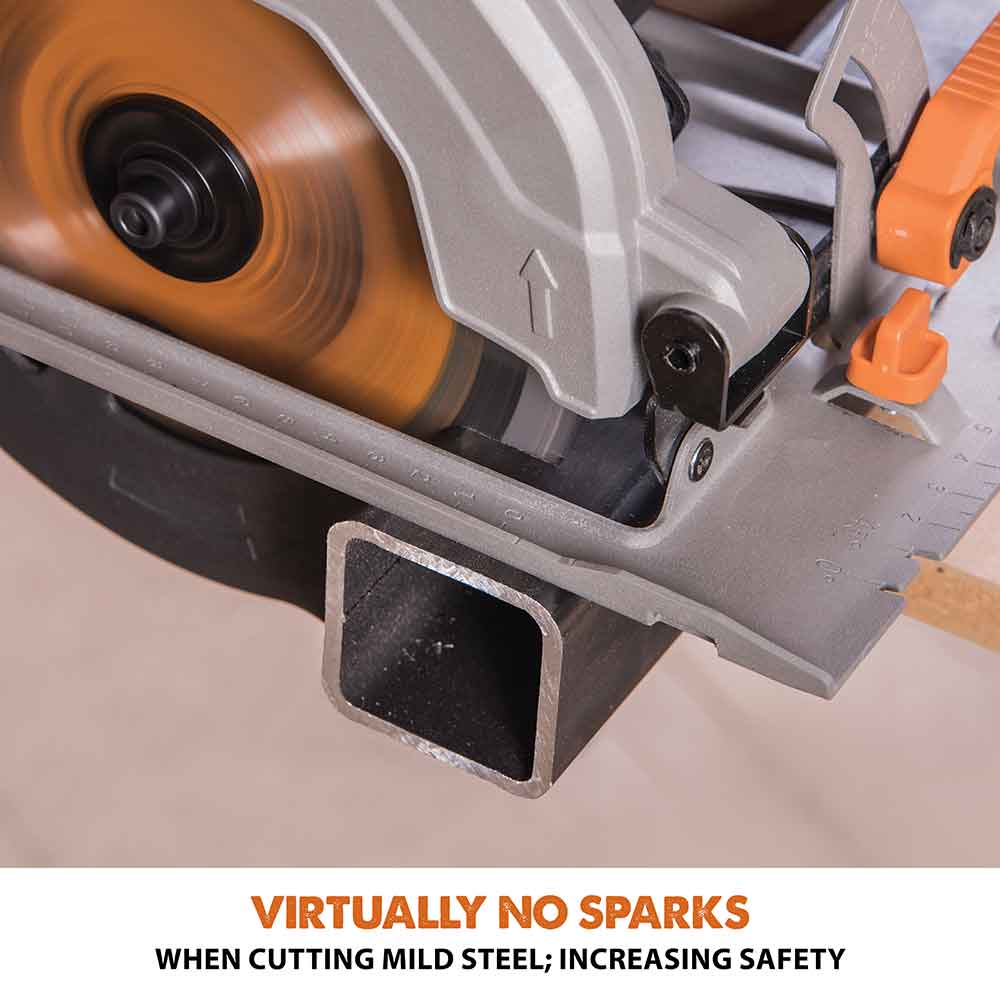

- Multi-Material cutting technology. One saw, one blade, cuts all.*
- Accurate cutting with adjustable 64mm depth of cut.
- Reliable, smooth square cutting every time in a variety of materials.
- Powerful 1200W hi-torque motor with optimized gearbox & blade system.
- 0° - 45° bevel tilt cuts angles accurately & easily.
- Channeled airflow & base indicators ensure optimum visibility of your cutting line.

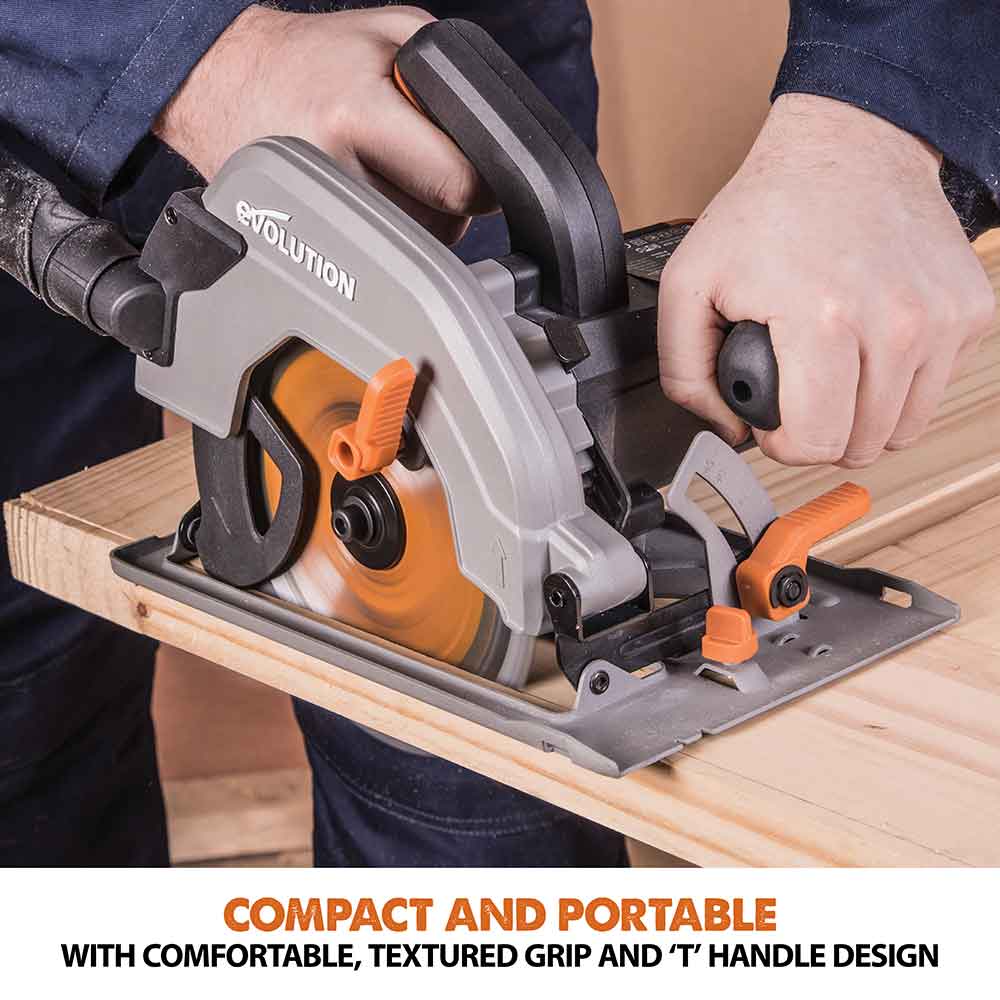

- Ergonomic 'T' Shape Handle provides optimum control & precision.
- Dust extraction port & adaptor included for vacuum compatibility.
- Japanese Tungsten-Carbide-Tipped (TCT) 185mm blade included.
- 3 Year limited warranty.
Specifications
| Motor (110V 50Hz): | 1200W |
| Motor (240V 50Hz): | 1200W |
| Speed No Load: | 3700 rpm |
| Max. Bevel (Left): | 45° |
| Circular Saw Base: | Pressed Steel |
| Cable Length: | 3m |
| Blade Dia.: | 185mm |
| No. of Teeth: | 16 |
| Bore: | 20mm |
| Kerf: | 1.7mm |
| Max. Depth of Cut (0°): | 64mm |
| Max. Depth of Cut (45°): | 42mm |
| Mild Steel Plate (Max. Thickness): |
3mm |
| Mild Steel Box Section (Max. Wall Thickness): |
3mm |
| Product Dimensions: | 255 x 355 x 235mm |
| Packaging Dimensions: | 370 x 260 x 220mm |
| Product Weight: | 4.5 kg |
| Packaged Weight: | 5.5 kg |
| Sound Pressure Level LPA: | 92,4dB(A) K:3dB(A) |
| Sound Power Level LWA: | 103,4dB(A) K=3 dB(A) |
| Vibration - Main Handle (Sawing Wood): | Ah,w= 2,747m/s2 |
| Vibration - Auxiliary Handle (Sawing Wood): | Ah,w= 2,619m/s2 |
| Vibration - Main Handle (Sawing Metal): | Ah,M= 2,302m/s2 |
| Vibration - Auxiliary Handle (Sawing Metal): | Ah,M= 2,239m/s2 |
| Uncertainty K: | 1,5m/s2 |
Items Supplied
| 16T Multi-Material TCT Blade |

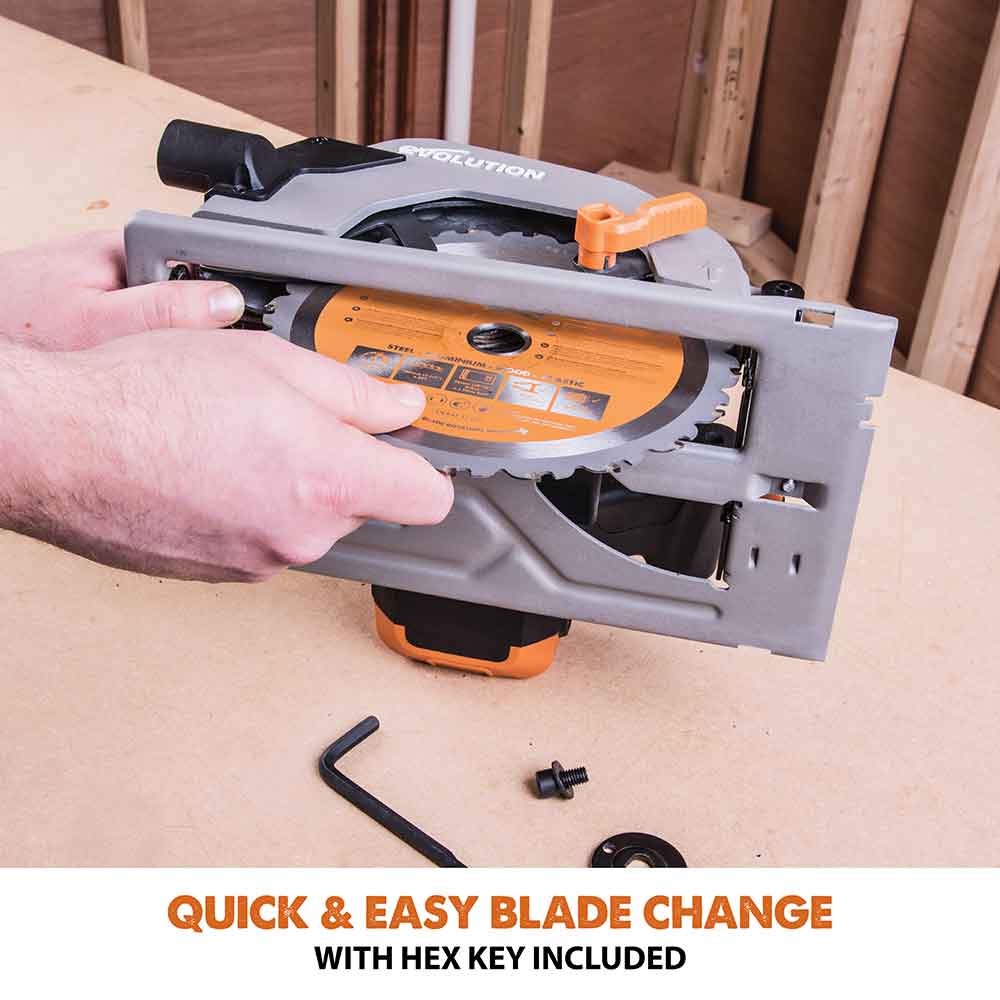

| Hex Key (Blade Change) |
| Parallel Edge Guide |
| Dust Port Adapter |
| Dust Hose Connector |
Where To Buy
Select Voltage
From $32.73
Original: $93.52
-65%Evolution R185CCSL 185mm Circular Saw with TCT Multi-Material Cutting Blade—
$93.52
$32.73More Images
Evolution R185CCSL 185mm Circular Saw with TCT Multi-Material Cutting Blade
The lightest of the 185mm circular saw models, it is a perfect addition to any workshop or job site. Get the job done with an impressive 64mm depth of cut and 0˚ to 45˚ bevel tilt.
Features
- Multi-Material cutting technology. One saw, one blade, cuts all.*
- Accurate cutting with adjustable 64mm depth of cut.
- Reliable, smooth square cutting every time in a variety of materials.
- Powerful 1200W hi-torque motor with optimized gearbox & blade system.
- 0° - 45° bevel tilt cuts angles accurately & easily.
- Channeled airflow & base indicators ensure optimum visibility of your cutting line.
- Ergonomic 'T' Shape Handle provides optimum control & precision.
- Dust extraction port & adaptor included for vacuum compatibility.
- Japanese Tungsten-Carbide-Tipped (TCT) 185mm blade included.
- 3 Year limited warranty.
Specifications
| Motor (110V 50Hz): | 1200W |
| Motor (240V 50Hz): | 1200W |
| Speed No Load: | 3700 rpm |
| Max. Bevel (Left): | 45° |
| Circular Saw Base: | Pressed Steel |
| Cable Length: | 3m |
| Blade Dia.: | 185mm |
| No. of Teeth: | 16 |
| Bore: | 20mm |
| Kerf: | 1.7mm |
| Max. Depth of Cut (0°): | 64mm |
| Max. Depth of Cut (45°): | 42mm |
| Mild Steel Plate (Max. Thickness): |
3mm |
| Mild Steel Box Section (Max. Wall Thickness): |
3mm |
| Product Dimensions: | 255 x 355 x 235mm |
| Packaging Dimensions: | 370 x 260 x 220mm |
| Product Weight: | 4.5 kg |
| Packaged Weight: | 5.5 kg |
| Sound Pressure Level LPA: | 92,4dB(A) K:3dB(A) |
| Sound Power Level LWA: | 103,4dB(A) K=3 dB(A) |
| Vibration - Main Handle (Sawing Wood): | Ah,w= 2,747m/s2 |
| Vibration - Auxiliary Handle (Sawing Wood): | Ah,w= 2,619m/s2 |
| Vibration - Main Handle (Sawing Metal): | Ah,M= 2,302m/s2 |
| Vibration - Auxiliary Handle (Sawing Metal): | Ah,M= 2,239m/s2 |
| Uncertainty K: | 1,5m/s2 |
Items Supplied
| 16T Multi-Material TCT Blade |
| Hex Key (Blade Change) |
| Parallel Edge Guide |
| Dust Port Adapter |
| Dust Hose Connector |
